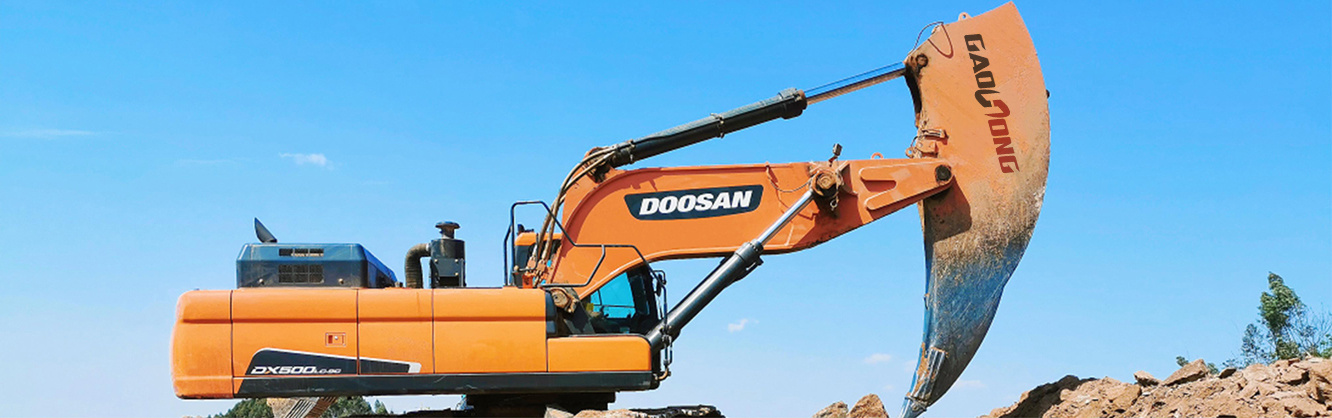

More stable: The traditional ripper adopts an embedded structure.In the process of excavating the crushed rock,failures such as the bolt falling off are prone to occur,which disperses the excavation power.The Combined Rock Arm adopts a integral ripper structure to educe the risk of additional failures,with stable cohesion and longer service life.

More flexible:The bucket oil cylinder is independently pressurized,and the construction cut-in angle of the Combined Rock Arm is increased by 307,which is convenient for the operator to find the weak point of the rock and break it,and excavate the earth more easily.

Suitable Excavator	40 TON	70 TON	90 TON
Total weight	18500-19000kg	25000-27000kg	30000-32000kg

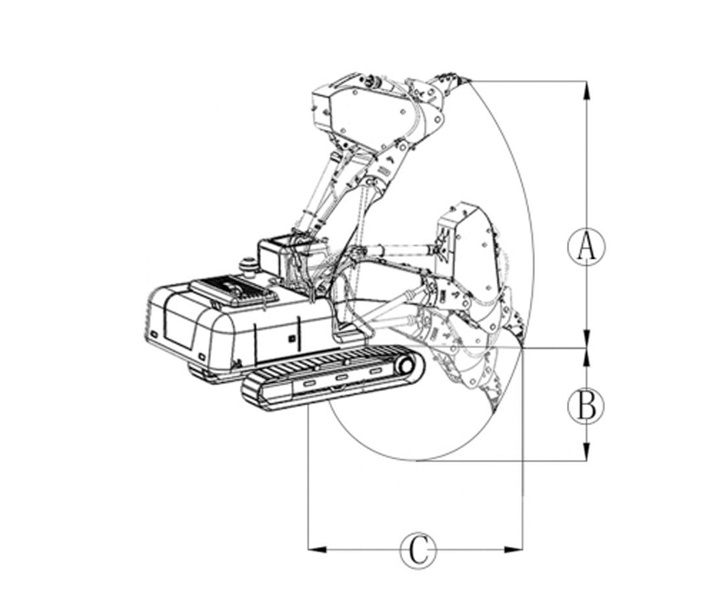

Maximum digging length (A)	7000mm	8300mm	9600mm
Maximum digging depth (B)	1600mm	1800mm	2000mm
Maximum digging distance (C)	6600mm	6900mm	7200mm
Boom transport size	480013001650mm	540014501700mm	600016001850mm
Arm transport size (incudes ripper）	49002200900mm	49002200900mm	545024501000mm

Excavation Efficiency Refer	40 TON	70 TON	90 TON
15-25MPa	160-190m³/h	180-210m³/h	200-250m³/h
20-28MPa	140-170m³/h	160-190m³/h	200-230m³/h
25-32MPa	110-160m³/h	130-180m³/h	170-220m³/h
28-35MPa			130-200m³/h
